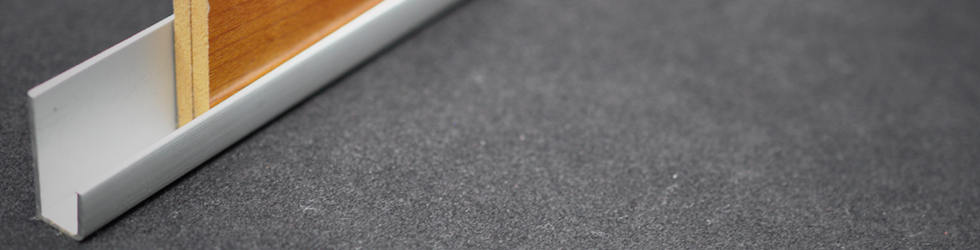

5/32" J Cap Edge Aluminum Trim Channel 6',U-Channel

ALLOY (CA) 6063-T5 (BD) 6463-T5 FINISHES Clear Anodized Finish Brite-Dip Anodized

CUT LENGTH 6 Foot Cut Length TOLERANCE Standard System of Measurement Inch Material MET ASTM

Brite-Dip Anodized J Cap Aluminum Trim to Fit 5/32" Material with 9/32" Reveal •5/32" W x 9/32" H x 23/32" H (.164" x .288" x .714") •3 and 6 Foot Cut Lengths •Brite-Dip Anodized Finish, Per MIL-A-8625F •6463 Chemically Enhanced Architectural Grade Alloy, T5 Temper •Punched Holes 4" on Center to Accommodate #5 Screws


5/32" J Cap Edge Aluminum Trim Channel 6',U-Channel
jcap532$28.50
