ALLOY (CA) 6063-T5
(BD) 6463-T5
FINISHES Clear Brite Finish
CUT LENGTH 6 Foot Cut Length
TOLERANCE Standard System of Measurement Inch Material
MET ASTM

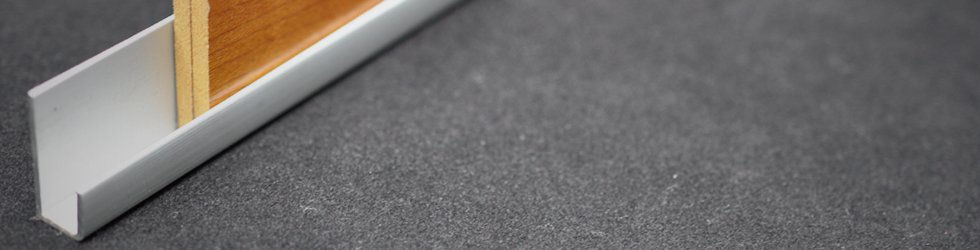

Shinny J Cap Aluminum Trim to Fit 1/4" Material with 5/16" Reveal •1/4" W x 5/16" H x 7/8" H (.260" x .312" x .875")
•3 and 6 Foot Cut Lengths
•Shinny Finish, Per MIL-A-8625F
•6463 Chemically Enhanced Architectural Grade Alloy, T5 Temper
•Punched Holes 4" on Center to Accommodate #5 Screws
|
